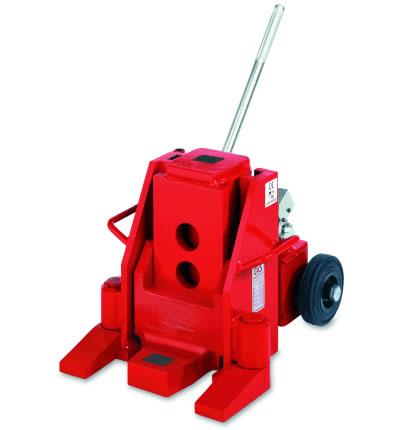

GKS Hydraulic Toe Jack - V20 - 44,000 lb. Capacity

Zoom Out
Zoom In

More Views

Click on image above to view full picture

Toe Jack - GKS V-20

Model#: GKS-V20 Toe Jack

Regular: $4,322.00

Today: $3,889.80

SKU#: GKS-V20

Add Items to Cart
  • | Add to Compare

    • GKS Hydraulic Toe Jack - V20 - 33,000 lb. Capacity



  • Cast-iron toe hook with a very high safety margin
  • Minimum toe height of 1.2"
  • Anti-slip pad on the load surface
  • Toe hook can be height-adjusted according to the lifting point.
  • Swivel feet allow positioning of the jack as close as possible towards the load
  • Full load capacity on the top plate
  • Coupling adaptor for remote operation of two or more jacks with a pump
  • Safety valve prevents overloading
  • Precision guideways on the housing and slider for precise lifting action and long life
  • Wheels and a telescopic handle for easy rolling (no more back injuries)
  • Lowering screw for precise and sensitive lowering of the load
  • A 180 deg. rotatable pump handle allows operation in tight corners

    Ships truck freight only. Please call for freight rates. (Quite reasonable actually!)



    • SKU GKS-V20
    Model GKS-V20 Toe Jack
    In Depth The key to 100% safety is the GKS adjustable cast-iron toe. For GKS standard jacks, they use a cast-iron toe hook with a very high safety margin.
    This enables GKS to reduce the toe height to a minimum, which is - from a user's standpoint -practical in use.

    The toe hook has an anti-slip pad on the surface for highest possible friction with the load.

    The toe hook can be height-adjusted according to the required lifting point.
    A peg on the back side of the toe hook secures the correct positioning of the toe. This increases the safety and simplifies the usage.
    Specifications

    GKS Hydraulic Toe Jack - V20 - 44,000 lb. Capacity



  • Maximum Load Capacity: 44,000 lbs.
  • Loading Height - Toe (min): 1.2"
  • Loading Height - Toe (max): 6.7"
  • Top Plate: 12.8"
  • Number of lift toe positions: 3
  • Working Pressure: 7,540 psi
  • Base area: 17.9" L x 12.6" W
  • Weight: 159 lbs.

    		•
