InPower SS-GM-02 Start/Stop/High Idle Control Module for GM C2500-6500 and Navistar CV

Zoom Out
Zoom In

More Views

Click on image above to view full picture

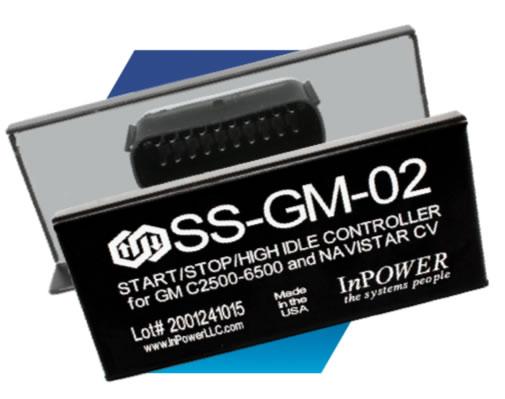

InPower SS-GM-02 Start/Stop/High Idle Control Module

Model#: InPower SS-GM-02

$233.33

SKU#: IP-SS-GM-02

Add Items to Cart
  • | Add to Compare

    • InPower SS-GM-02 Start/Stop/High Idle Control Module for GM C2500-6500 and Navistar CV


    The InPower SS-GM-02 Start Stop Series Module is designed to provide Start/Stop Functionality for (Diesel Only) GM 2019+ C2500 – C6500 and Diesel Navistar CV vehicles with the factory installed PTO Option and Remote PTO Controls Enabled


    InPower SS-GM-02 Start/Stop/High Idle Control Module for GM C2500-6500 and Navistar CV


    InPower SS-GM-02 Start Stop Series Module is designed to provide Start/Stop Functionality for (Diesel Only) GM 2019+ C2500 – C6500 and Diesel Navistar CV vehicles with the factory installed PTO Option and Remote PTO Controls Enabled (GM Bulletin 120). With proper application of the SS-GM-02 GM Start/Stop Control Module, the user will be able to implement a reliable system that will provide integrated Start/Stop control of their GM chassis.
    SKU IP-SS-GM-02
    Model InPower SS-GM-02
    Manufacturer InPower
    In Depth

    InPower SS-GM-02 Start/Stop/High Idle Control Module for GM C2500-6500 and Navistar CV



  • Selection of Two Selectable RPM inputs via SS-GM-02 (values Programmed by GM Techtool); GM PTO Controller provides Standby RPM (default 950 RPM) when PTO is ON.
  • Provides a clean, reliable Start/Stop/High Idle interface for 2019+ GM C2500 – C6500 and Navistar CV Vehicles with Factory Installed PTO Option and Remote PTO controls enabled.
  • Plug and Play Harness connects to chassis PTO Upfitter connector - also provides blunt cut wires for the PTO connections (to address different PTO manufacturers).
  • Compact Size with Frame Rail Mountable case.
  • Designed to be waterproof to IP66 (Dust Proof, Hard Spray resistant).
    		•
    Specifications

    InPower SS-GM-02 Start/Stop/High Idle Control Module for GM C2500-6500 and Navistar CV



  • Power Input (BAT): +11 to 16 Vdc
  • Ground (GND): Connection to vehicle ground (Battery Negative) through PTO connector
  • Outputs are PTO-CTL 6A@12V, OUT 2 6A@12V, OUT 3 3A@12V
    		•
