20 Foot Telehandler Spreader Bar With Top Lift Hooks - 10,000 Lb. Capacity - Haugen MASPRX-1320

Zoom Out
Zoom In

More Views

Click on image above to view full picture

Forklift Spreader Bar - 10,000 Lb. - Haugen MASPRX-1320

Model#: Haugen MASPRX-1320

Regular: $5,595.00

Today: $5,035.50

SKU#: HAUGEN-MASPRX-1320

Add Items to Cart
  • | Add to Compare

    • 20 Foot Forklift Spreader Bar With Top Hooks - 10,000 Lb. Capacity - Haugen MASPRX-1320

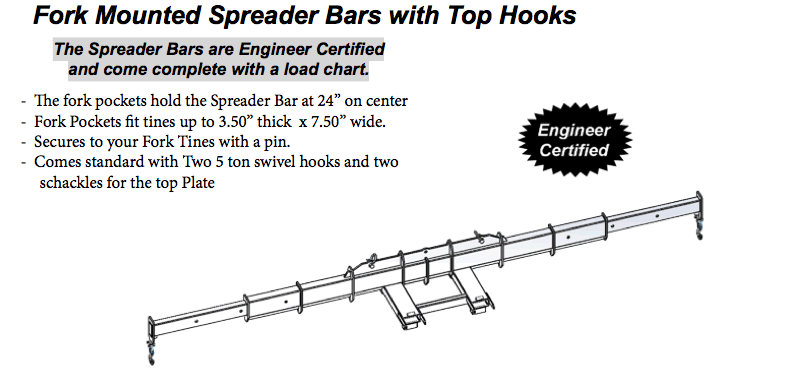

    Fork Mounted Spreader Bars with Top Lift Hooks Designed For Telehandlers and Construction Forklifts
  • Adjustable Width From 13 Foot to 20 Foot Wide
  • Engineer Certified
  • 10,000Lb. Capacity
  • Fork Pockets Hold the Spreader Bar at 24 Inch on Center
  • Fork Pockets fit Tines up to 3.50 Inch Thick x 7.50 Inch Wide
  • Secures to Your Fork Tines With a Pin.
  • Comes Standard with Two 5 ton Swivel Hooks and Two Shackles for the Top Plate


    • SKU HAUGEN-MASPRX-1320
    Model Haugen MASPRX-1320
    Manufacturer Haugen
    Specifications

    20 Foot Telehandler Spreader Bar - 10,000 Lb. Capacity - Haugen MASPRX-1320


    Haugen Spreader Bars are Engineer Certified and Come Complete with a Load Chart
  • Center Position - Single Point Load: 10,000 Lbs.
  • Point Loads @ 65.375 Inch Spread Position: 5000 X 2 = 10,000 Lbs.
  • Point Loads @ 110.00 Inch Spread Position: 4000 X 2 = 8000 Lbs.
  • Point Loads @ 162.00 Inch Spread Position: 3500 X 2 = 7000 Lbs.
  • Point Loads @ 201.00 Inch Spread Position: 3000 X 2 = 6000 Lbs.
  • Point Loads @ 240.00 Inch Spread Position: 2250 X 2 = 4500 Lbs.
    		•
